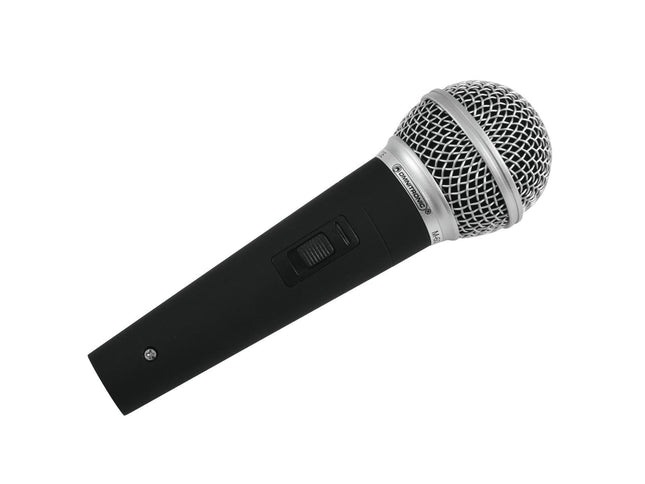

Dynamic microphone for studio and live applications
Balanced XLR output
Cardioid polar pattern
Ideal for song transmission or instrument controlling
On/off slide switch
Rubber-coated handle

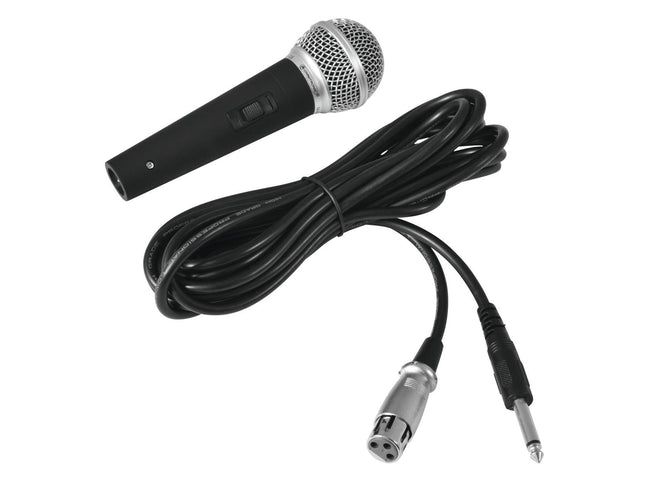

Including XLR/jack cable
Practical transport suitcase
Excellent quality at a low price
Polar pattern: Cardioid
Type:
Vocal microphone; Microphone for instruments
Capsule type:
Dynamic
Polar pattern:
Cardioid
Frequency range:
50 - 15000 Hz
Impedance:
600 Ohm
Connections:
1 x Microphone via 3-pin XLR
Input sensitivity:
-52 dB
Transducer type:
Dynamic
Switch:
On/off switch
Dimensions:
Length: 17,5 cmDiameter: Ø 5,3 cm
Weight:
520 g

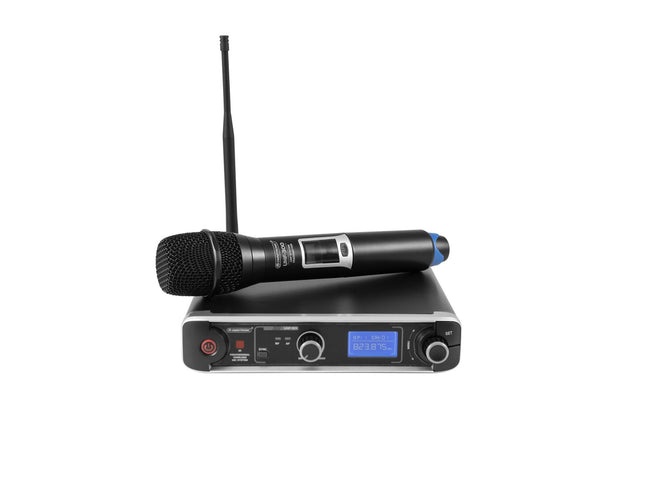

1-channel UHF PLL microphone system
1-channel multifrequency receiver unit and hand-held microphone with UHF PLL technology
93 preset channels in 10 channel groups
Easy and error-free synchronization between receiver and transmitter via infrared signal
LCDs for group, frequency and channel
LEDs for carrier and audio signal
Volume control
Balanced XLR output
Unbalanced 6.3 mm jack
Jack cable included
Removable antenna (BNC connection)
Incl. mounting brackets for 483 mm rack installation
1 dynamic microphone with cardioid polar pattern and LCD for battery capacity and frequency
Matching pocket transmitter can be ordered separately
License-free and approved in large parts of the EU (please check on a country-by-country basis)
Receiver
Housing design: Desktop console; (19") 48.3 cm rack installation (provided) 1 U
Microphone
Polar pattern: Cardioid
Use a operating range up to 60m
S/N ratio:
>80 dB
Connections:
Output: 1 x Microphone via 6.3 mm plug (unbal.)Output: 1 x Microphone via 3-pin XLR
Frequency selection:
93 Switchable frequencys
Modulation:
FM
RF power output:
10 mW
Material:
Metal
Housing design:
Desktop console(19") 48.3 cm rack installation (provided) 1 U
Width:
21 cm
Height:
4.7 cm
Depth:
23.5 cm
Microphone
Type:
Transmitter
Power supply:
3 V DC
Power connection:
Battery/battery pack
Capsule type:
Dynamic
Polar pattern:
Cardioid
Battery:
2 x Mignon (AA) (not included)
Frequency range:
50 - 18.000 Hz
THD:
<0.5 % at 1 kHz
Frequency band:
UHF 863 - 865 MHz; UHF 823 - 832 MHz
Frequency stability:
± 0.001 %
Range:
60 m
switch:
on/off switch
Material:
Plastic
Length:
25 cm
Diameter:
5.2 cm
Weight:
0.23 kg

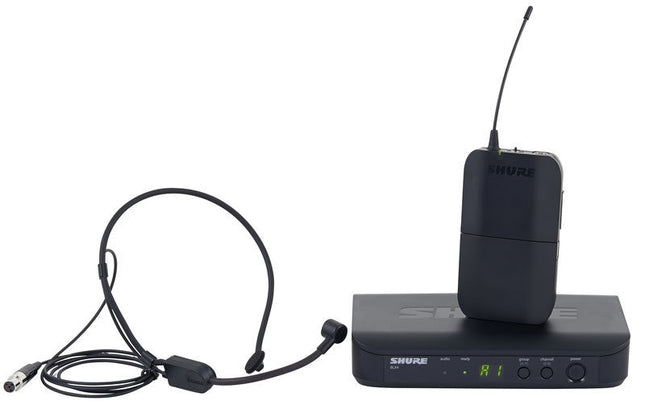

UHF Wireless System
PG Headset Series
BLX1 pocket transmitter
PGA31 headset microphone
Up to 7 systems simultaneously
Pilot tone
Microprocessor-controlled antenna diversity
Quick-Scan function for free frequency detection
Condenser Headset PGA31: 60 - 20,000 Hz, cardioid
Plastic receiver
Integrated antennae
XLR and jack outputs
Audio status LEDs
Frequency range: S8 (823-832 MHz)
