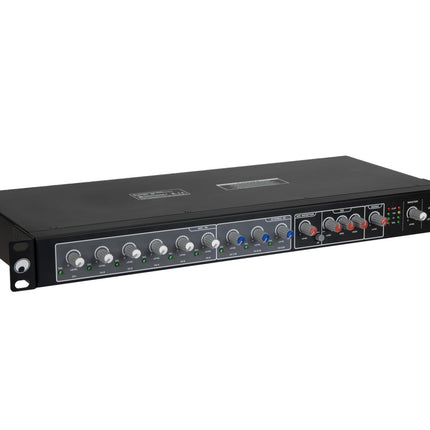

Mikser EM-312 OMNITRONIC, 6 mono, 3 stereo kanaler

Mikser EM-312 OMNITRONIC, 6 mono, 3 stereo kanaler

Product form

Microphone line mixer, 6 mono channels + 3 stereo channels 6 mono mic/line input channels (combo jack), switchable 3 stereo... Read more

Free pickup in our shop(s)

Sendes snarest

3.165,00 kr Incl. VAT

    • Garantert sikker handel

      shop pay
    • Gratis frakt på alle ordrer over kr.2000.-

    Description

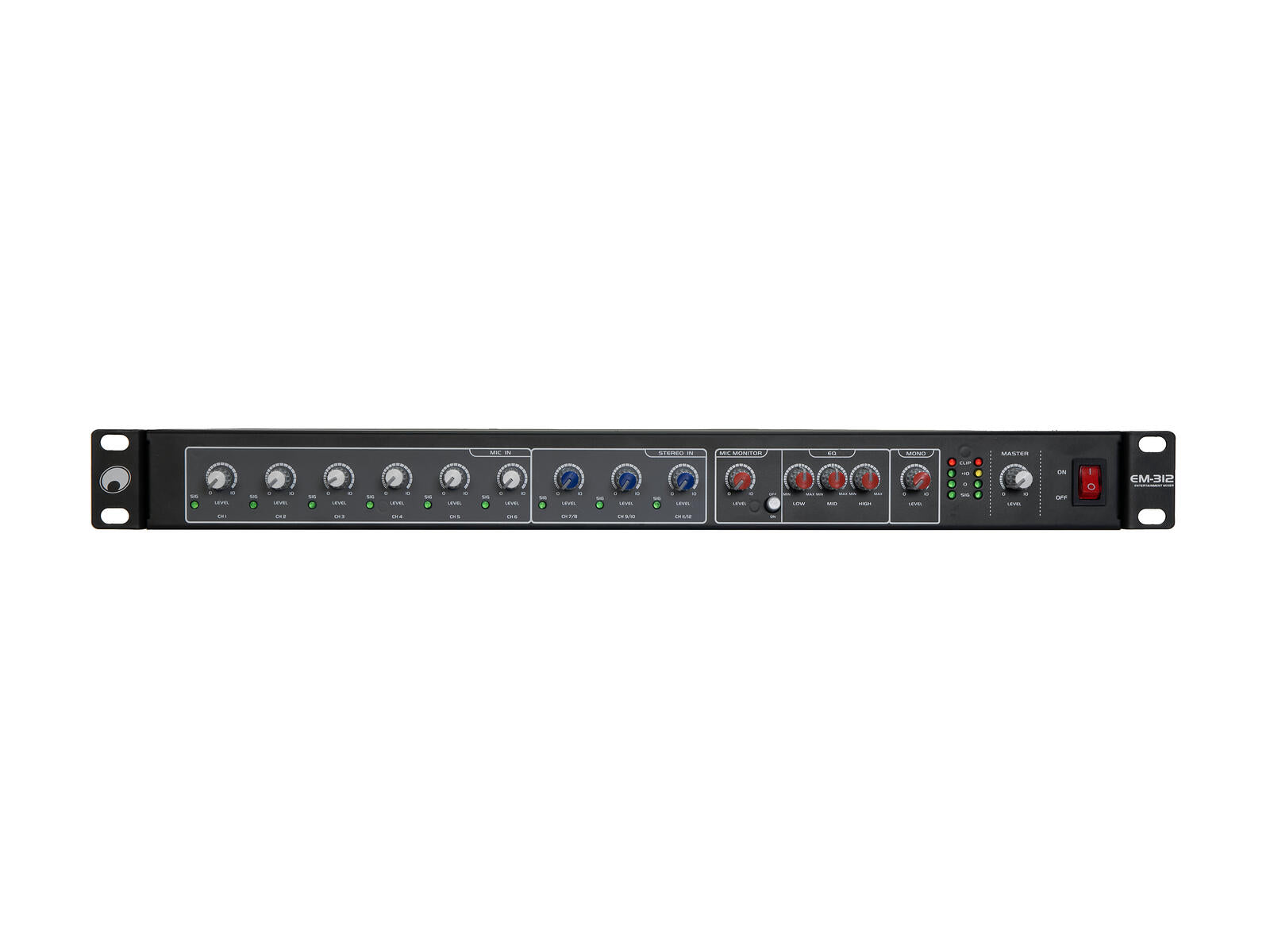

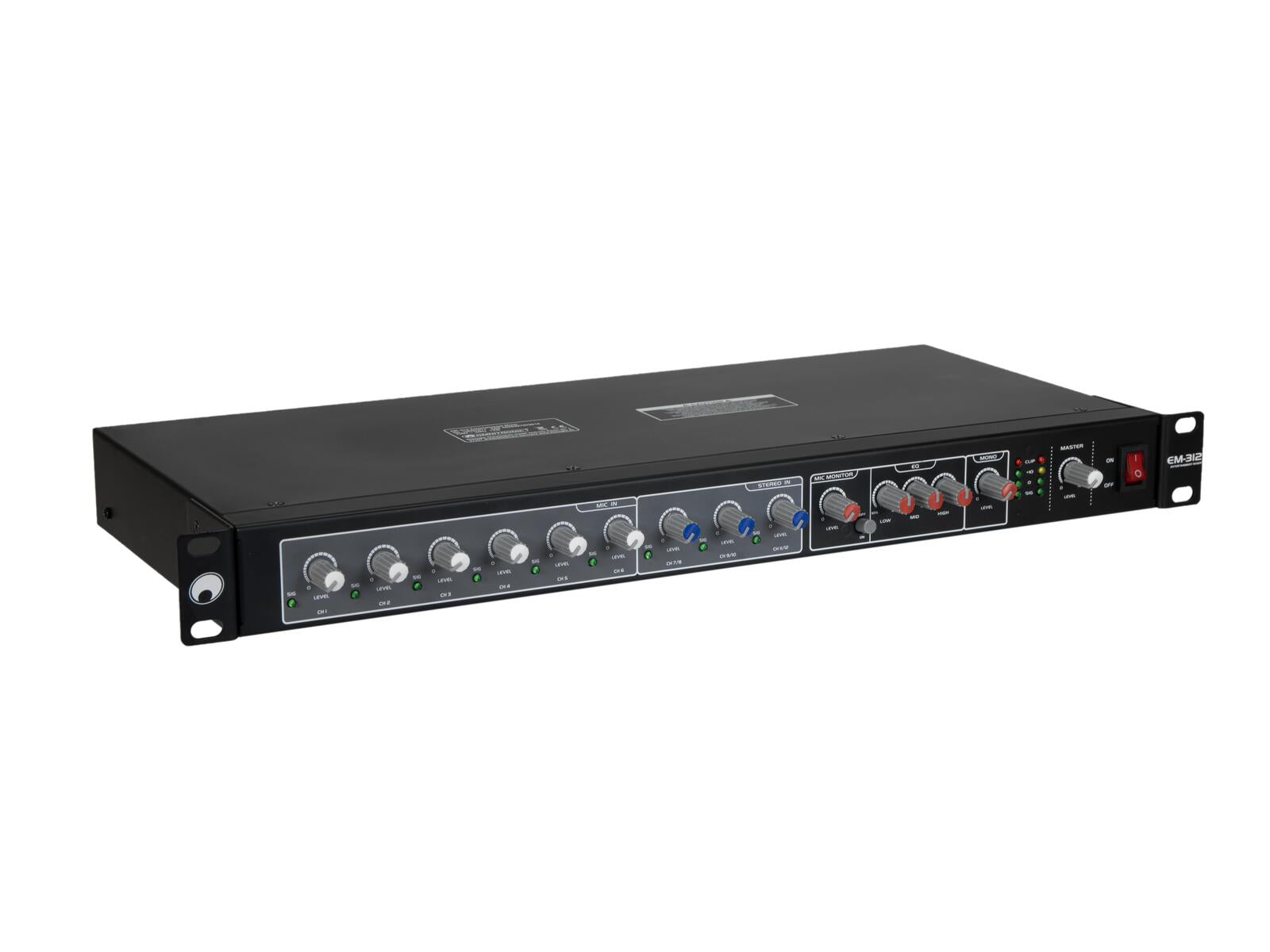

    Microphone line mixer, 6 mono channels + 3 stereo channels

    • 6 mono mic/line input channels (combo jack), switchable
    • 3 stereo line input channels (RCA)
    • Phantom power can be switched on for each microphone input
    • All input channels with separate level controls and signal LED
    • Adjustable priority circuit for channel 1
    • Balanced stereo XLR outputs and RCA outputs
    • Adjustable monitor output (6.3 mm jack) for monitoring the microphone signals
    • Adjustable mono line output (6.3 mm jack)
    • Master level control, 4-digit stereo LED level meter and 3-band equalizer
    • Additional screw terminals for 24 V DC power input
    • Incl. mounting brackets for 483 mm rack installation (1 U)
    • (19") 48.3 cm rack installation 1 U



    Power supply: 230 V AC, 50 Hz
    Or
    24 V DC
    Power consumption: 12 W
    Protection class: Class I
    Power connection: Mains input IEC connector (M) mounting version Power supply cord with safety plug
    Mains input screw terminal
    Frequency range: 20 - 22000 Hz
    S/N ratio: >103 dB
    THD: <0,03 % at 1 kHz
    Phantom power: 18 V DC or 21 V DC
    Impedance: Input mic/line: 1,4 kOhm
    Input line: 10 kOhm
    Output 120 Ohm
    Control elements: Power switch
    Status LED: Power, signal, master level meter, clip

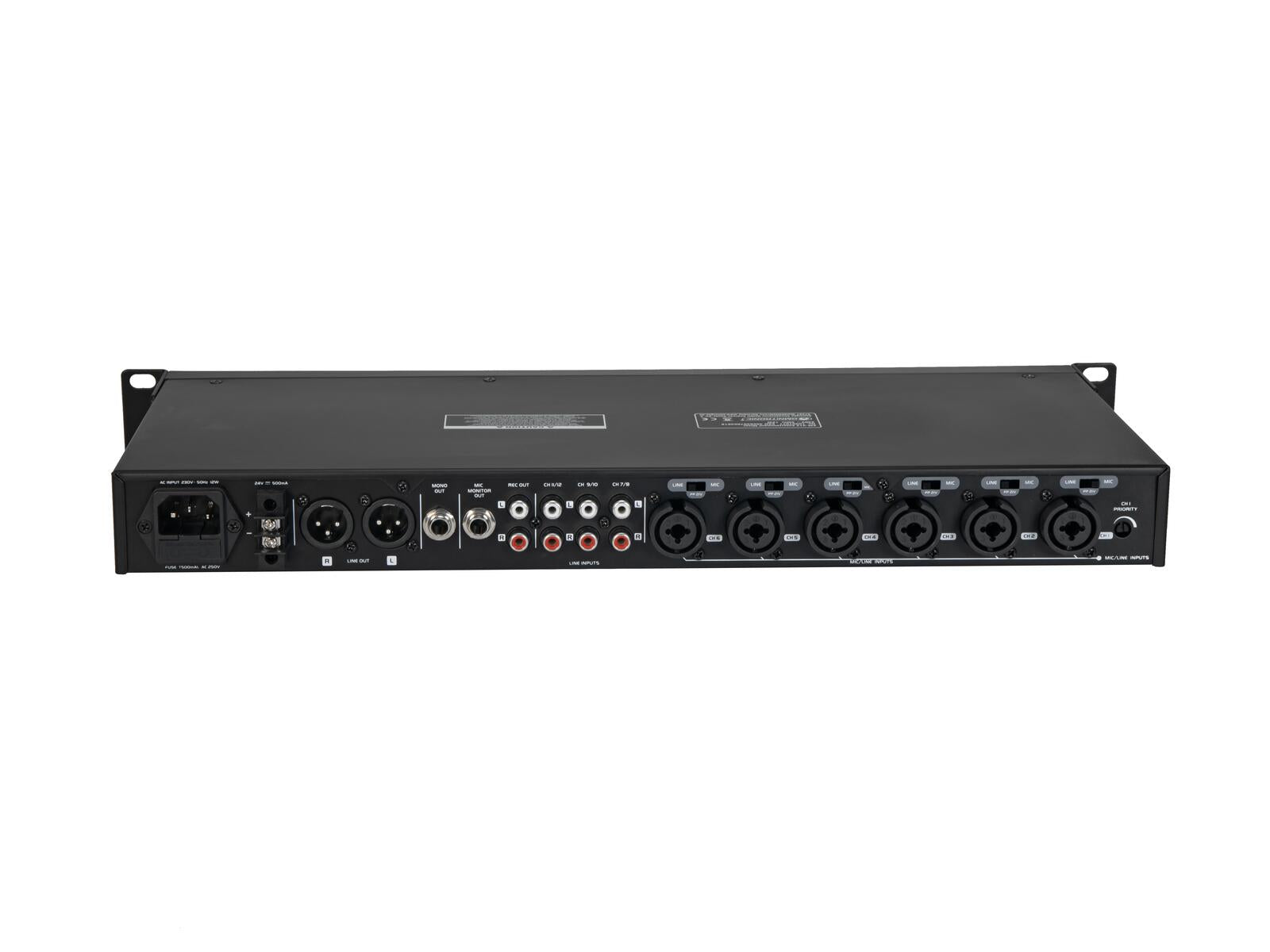

    Connections: Input: 6 x mic/line via 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
    Input: 3 x line via stereo RCA
    Output: 2 x master via 3-pin XLR
    Output: 1 x mono via 6.3 mm jack socket (mono) mounting version
    Output: 1 x rec. via stereo RCA
    Chanals: Input chanel: 6 x mono with Mic-line switch via 3-pin XLR/6.35mm jack (F) combination socket (mounting version), channel control via Rotary dial, 3-band tone control EQ 80Hz/2,5kHz/12kHz
    Input chanel: 3 x stereo via RCA, channel control via Rotary dial, 3-band tone control EQ 80Hz/2,5kHz/12kHz
    Master output: 1 x stereo via XLR, channel control via Rotary dial
    Master output: 1 x mono via Plug 6,3mm/3,5mm (Jack), channel control via Rotary dial
    Max. level: Input: Microphone -19 dBu
    Input: line +21 dBu
    Output: +21 dBu
    Housing design: (19") 48.3 cm rack installation 1 U
    Dimensions: Width: 48,3 cm
    Depth: 23 cm
    Height: 4,45 cm
    Weight: 3,04 kg

    Specifications

    • Weight: 200gr
    • Usage: Indoor & outdoor

    Pros and cons

    • Sustainably produced
    • Ideal for everyday use
    • May discolor in direct sunlight
